Broadsea-atlasdb

  • Initially, the D2E system does not contain any data
  • The demo dataset uses broadsea-atlasdb docker container, which is part of the OHDSI Broadsea set of Docker containers.
  • Below are alternative methods to setup broadsea-atlas database.

Setting up demo dataset via command line​

Note: You need to start D2E with d2e -e start in order to use the demo dataset

Run the command:

d2e setupdemo
  • Upon completion, switch to the Researcher Portal by going to Account > Switch to Researcher Portal

The expected display is:

AdminPortal

Setting up demo dataset via UI​

  • Open the D2E Portal and click Switch to the Admin Portal.

  • In the Admin portal click on Setup menu

  • Click the Demo Setup - Configure button.

The expected display is:

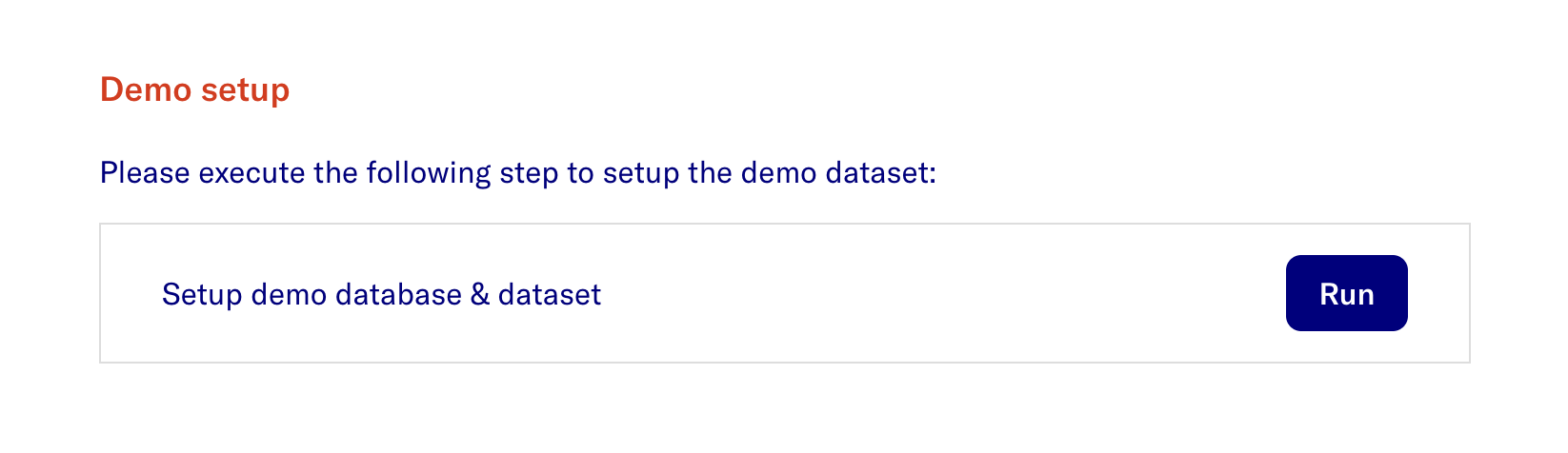

DemoSetup

  • Setup demo database - Click on the Run Button
  • Please restart all services - by executing the following commands in the terminal:
d2e -e stop
d2e -e start
d2e patchdemodb
  • Setup demo dataset - Click on the Run Button
  • Go to Datasets > Demo Dataset > Permissions and add access to the dataset to your user e.g. admin.
  • Logout and login again in the account page
  • Go to Jobs and wait until all 4 Jobs are completed
  • Switch to the Researcher Portal by going to Account > Switch to Researcher Portal

The expected display is:

AdminPortal
