Broadsea-atlasdb

  • This section guides users on setting up a demo dataset. Initially, the Data2Evidence system does not contain any data.
  • It uses broadsea-atlasdb docker container, which is part of the OHDSI Broadsea set of Docker containers.
  • Below are alternative methods to setup broadsea-atlas database:

Setting up demo dataset via command line​

Note: You need to start Data2Evidence with d2e -e start in order to use the demo dataset

Run the command:

d2e setupdemo
  • Upon completion, switch to the Researcher Portal by going to Account > Switch to Researcher Portal

The expected display is:

AdminPortal

Setting up demo dataset via UI​

  • Open the Researcher Portal and click Switch to the Admin Portal.

  • In the Admin Portal click Setup

  • Click the Demo Setup - Configure button.

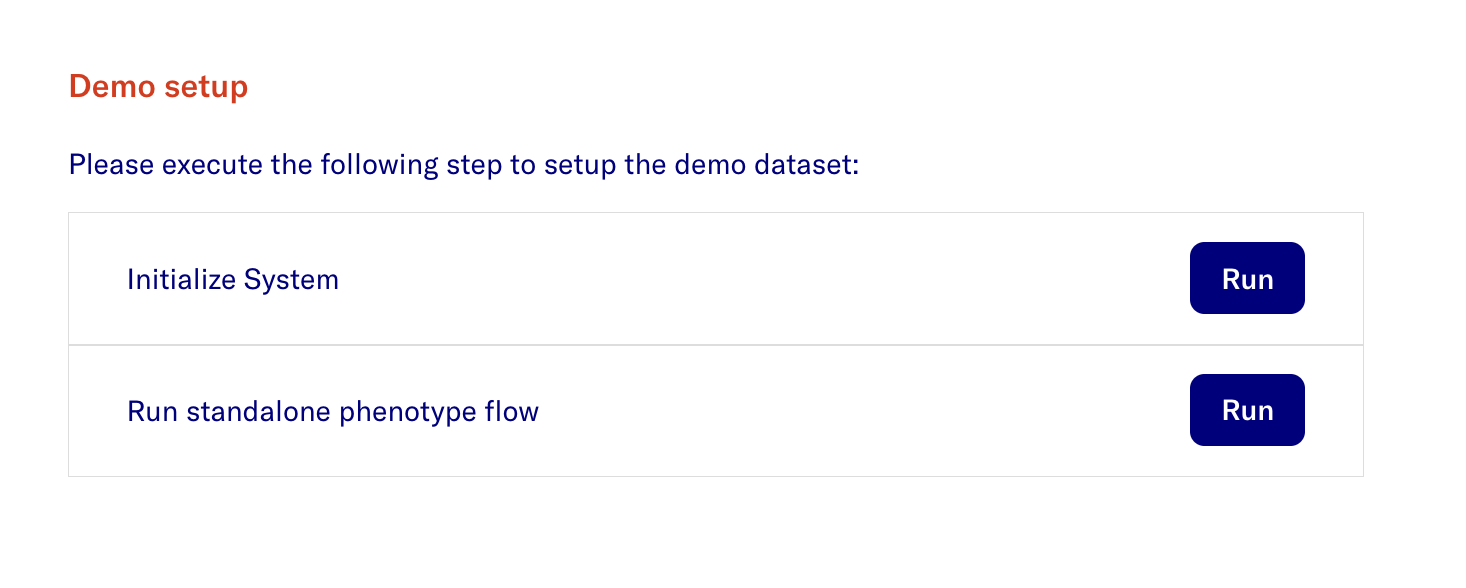

The expected display is:

DemoSetup

  • Setup demo database and dataset - Click the Run Button
  • Go to Datasets > Demo Dataset > Permissions and add access to the dataset to your user e.g. admin.
  • Log out and Log in again to the account page
  • Go to Jobs and wait until all 4 Jobs are completed
  • Switch to the Researcher Portal by going to Account > Switch to Researcher Portal

The expected display is: AdminPortal
